Solutions For Foundation Testing & Monitoring

High Strain Dynamic Pile Testing (PDA Test)

PDA Test

HIGH STRAIN DYNAMIC PILE TESTING (PDA TEST)
(conforms to ASTM D4945)
Utilizes the Pile Driving Analyzer®. The PDA test evaluates activated bearing capacity, hammer performance, driving stresses and pile integrity. PDA Testing is quick, low cost and reliable.

CAPWAP ®

CAPWAP ®



CAPWAP (Case Pile Wave Analysis Program) is the software that models force and velocity data measured by the PDA to determine soil responses.



GRLWEAP Wave Equation Analysis

GRLWEAP Wave Equation Analysis

Pile driving software that simulates pile driving prior to actual pile installation.

Pile Integrity Testing (PIT Test)

PIT Test

LOW STRAIN PILE INTEGRITY TESTING (PIT TEST)
(conforms to ASTM D5882)
Utilizes the Pile Integrity Tester (PIT). PIT Test detects potentially dangerous defects such as major cracks, necking, soil inclusions or voids by pulse echo or transient response methods. It is fast, economical and effective.

Crosshole Sonic Logging

Crosshole Sonic Logging



(conforms to ASTM D6760)
A sonic logger such as the Cross-Hole Analyzer is used to evaluate concrete quality in cast-in-situ piles.



Noise & Vibration Measurement

Noise & Vibration Measurement

Calibrated Seismographs and Class 1 Sound Level Meters are used to measure and monitor vibrations and noise levels during pile installation, boing activities or blasting.

Geotechnical Instrumentation

Geotechnical Instrumentation

Settlement Monitoring – A Precise Level is use to obtain readings to monitor the amount and rate of settlement of a building or ground over a period of time.
Inclinometer Monitoring – A Slope Inclinometer is used to detect and monitor lateral earth movements.

Instrumented Pile Load Test

Instrumented Pile Load Test

(Maintained Load Test, Lateral and Tension Load Test)
Various equipment such as load cells, LVDTs, Vibrating Wire Strain Gauges (VWSG), data loggers are used in measuring pile head settlement, shaft friction and end bearing. For continuous measurement of the strain profile, Distributed Fiber Optic Strain Sensors (DFOSS) are used.

Bi-Directional Static Load Test

Bi-Directional Static Load Test

(conforms to ASTM D8169/D8169M)
Bi-directional Static Load Test (BDSLT) is a reliable MLT option for large diameter piles used widely in the market to measure pile capacity. The advantage of BDSLT is the rock socket or lower portion of the pile is able to be mobilized fully.

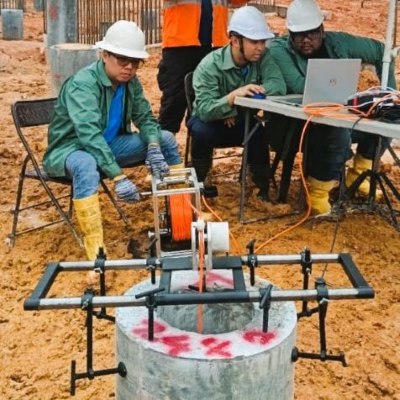

Distributed Fiber Optic Sensing Technology (DFOSS)

DFOSS

The Distributed Fiber Optic Sensing Technology (DFOSS) is offering new possibilities in geotechnical and structural health monitoring. The DFOSS allows the acquisition of a significant amount of precise relative strain and temperature measurements.
